CLIP-IT® installation instructions

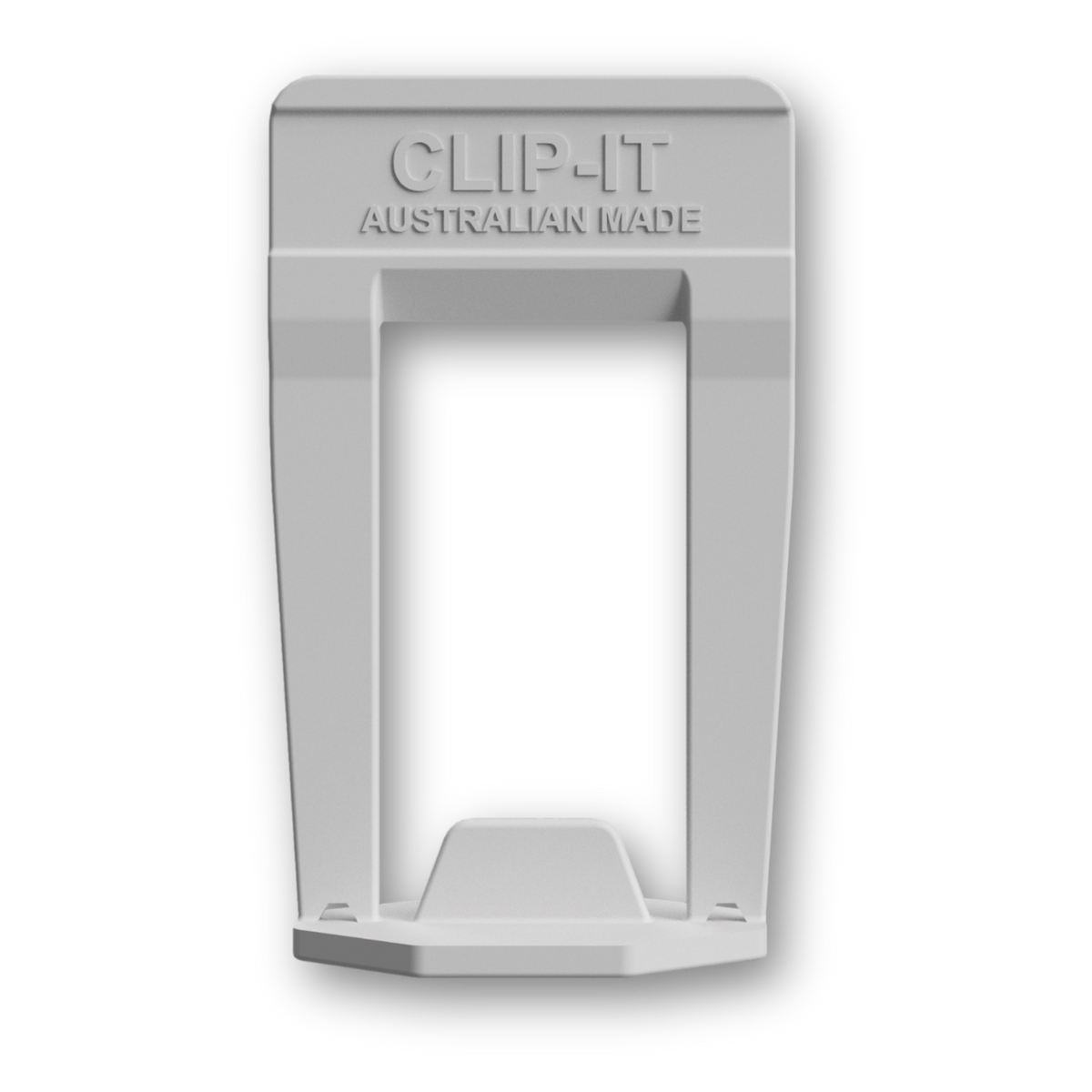

How to use 3 mm stone clips for 30–40 mm material.
Choose the clip and wedge for your material thickness. Hold adjoining stone or paver edges in alignment while the adhesive or bedding material cures.
- Grout joint
- 3 mm
- Material thickness
- 30–40 mm
- Clip colour
- Light grey
Before you start
Prepare for a clean installation.
Check the base and layout
Confirm the stone, tile or paver is 30–40 mm thick and the planned grout joint is 3 mm. Prepare a clean, flat, level base for the chosen installation.
Use the right adhesive
Choose adhesive or bedding material suited to the installation. Apply it with the appropriate trowel, following the manufacturer’s instructions.
Have compatible wedges ready
Use a compatible Regular Wedge where suitable, or the 30 mm Stone & Paver Wedge setup where the extra height is needed. Confirm the fit against your material thickness before laying.
Using the product
Place. Tighten. Remove.
Follow the three stages for your clip and compatible wedge.

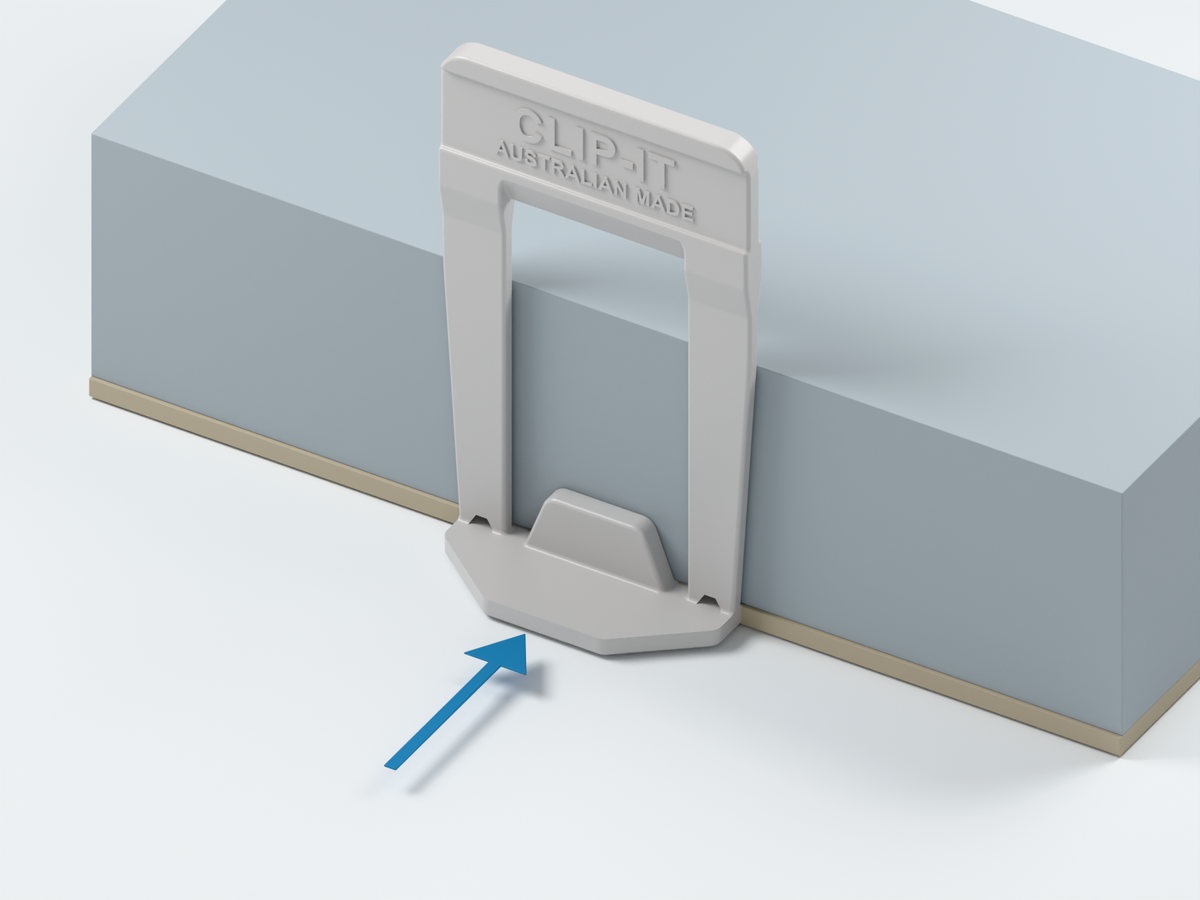

Place the clips and adjoining pieces
Set the first piece firmly, then slide the clip base under its exposed edge. Keep the upright part of the clip at the joint.
Position the adjoining piece against the clip so the base sits beneath both edges. Check joint spacing as you continue.
Insert and tighten the wedges
Push a compatible CLIP-IT® wedge through the clip opening to hold adjoining edges in alignment.
Use a compatible Regular Wedge where suitable, or the 30 mm Stone & Paver Wedge setup where the extra height is needed. Confirm the fit against your material thickness before laying. Check adjoining surfaces as you tighten the compatible wedge.
Example shown: 35 mm material with a Regular Wedge.

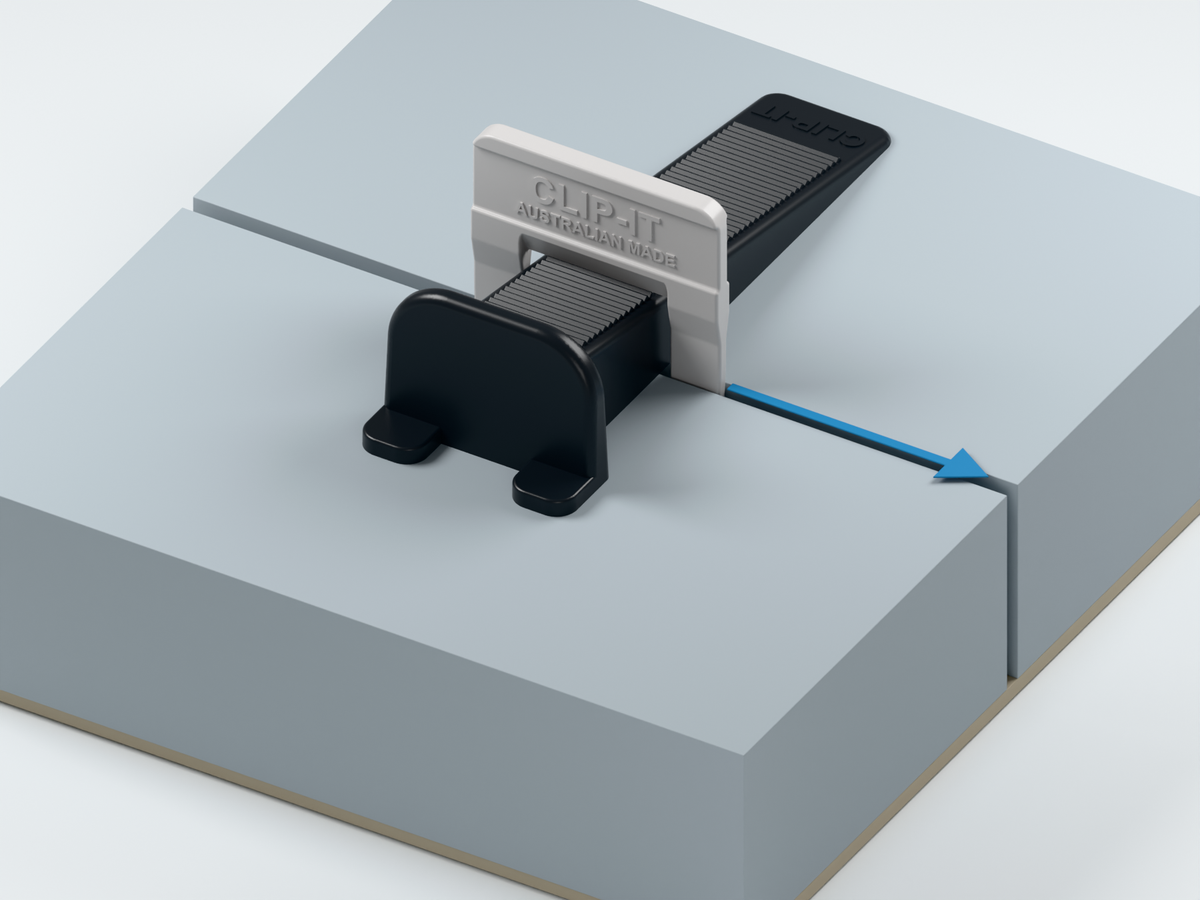

Let the installation cure, then remove
Wait until the adhesive or bedding material has cured, following the manufacturer’s curing instructions.
Remove the cured clips along the grout line. The DE-CLIP-IT Hammer can knock these larger clips off, but its slotted end does not fit over them. Recover the wedges for reuse.
Complete the setup
Complete your setup.
Use the compatible CLIP-IT® products for this guide.
Reusable tile levelling wedges
Check the specified material thickness and wedge fit before use.
View product How to use
30 mm stone & paver wedges
Use the stone/paver wedge setup where extra height is needed.
View product How to use
DE-CLIP-IT Hammer
Hammer action only on these larger clips; the slot does not fit.
View product How to useA few useful answers
Get the details right.
Material thickness, wedge fit and clip removal.
What do 3 mm and 30–40 mm mean?
3 mm is the grout joint spacing. 30–40 mm is the thickness of the stone, tile or paver the clip is designed to suit.
Which wedge should I choose?
Use a compatible Regular Wedge where suitable, or the 30 mm Stone & Paver Wedge setup where the extra height is needed. Confirm the fit against your material thickness before laying.
Does the hammer slot fit these clips?
No. The slotted end does not slide over 3 mm 30–40 mm Stone Clips. Use the tool as a hammer to knock off cured clips along the joint.
When can I remove the clips?
After the adhesive or bedding material has cured. Follow its manufacturer’s curing instructions; there is no single curing time for every product and job.
Why is a clip not breaking cleanly?
Excess adhesive around the clip legs can interfere with removal. Keep that area clear during laying, allow curing, and remove along the grout line. Contact CLIP-IT® if a clip remains stuck.
Can the wedges be reused?
Yes. Recover the compatible wedges after clip removal and keep them for the next installation. The clips are designed to break at the base during removal.
Talk to the people who make it
Need a hand with your installation?
Tell the CLIP-IT® team your material thickness, joint width and what is happening so we can help you check the setup.
