CLIP-IT® installation instructions

How to use 3 mm stone clips for 20–30 mm material.

Use 30 mm Stone & Paver Wedges below 25 mm and Regular Wedges from 25–30 mm. The matching wedge holds adjoining stone or paver edges in alignment while the adhesive or bedding material cures.

Grout joint
3 mm
Material thickness
20–30 mm
Clip colour
Green

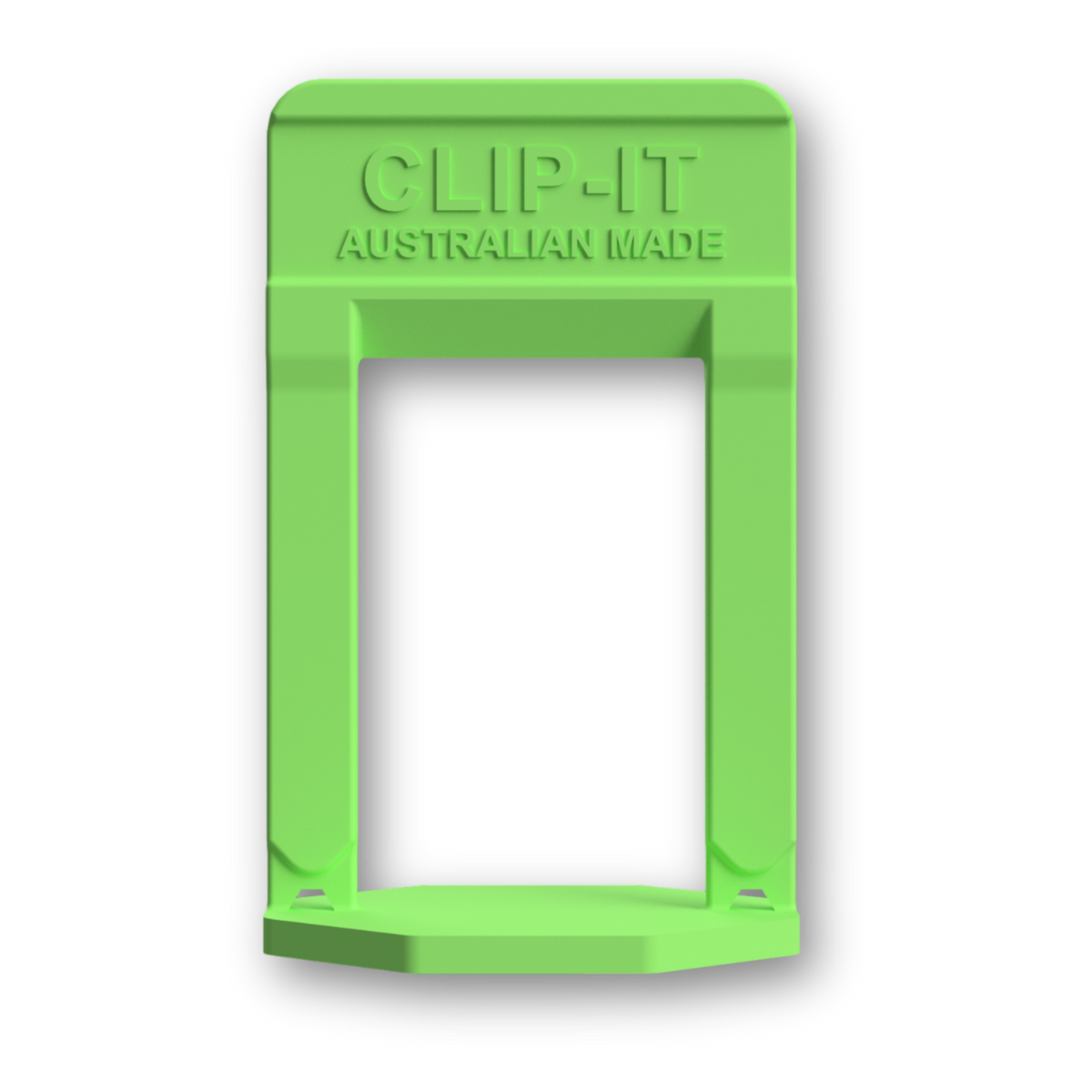

3MM 20-30MM STONE CLIPS
3 mm stone clips · 20–30 mm

Before you start

Prepare for a clean installation.

  • Check the base and layout

    Confirm the stone, tile or paver is 20–30 mm thick and the planned grout joint is 3 mm. Prepare a clean, flat, level base for the chosen installation.

  • Use the right adhesive

    Choose adhesive or bedding material suited to the installation. Apply it with the appropriate trowel, following the manufacturer’s instructions.

  • Have compatible wedges ready

    For material from 20 mm up to below 25 mm, use 30 mm Stone & Paver Wedges. For 25–30 mm material, including exactly 25 mm, use Regular Wedges.

Using the product

Place. Tighten. Remove.

Follow the three stages for your clip and compatible wedge.

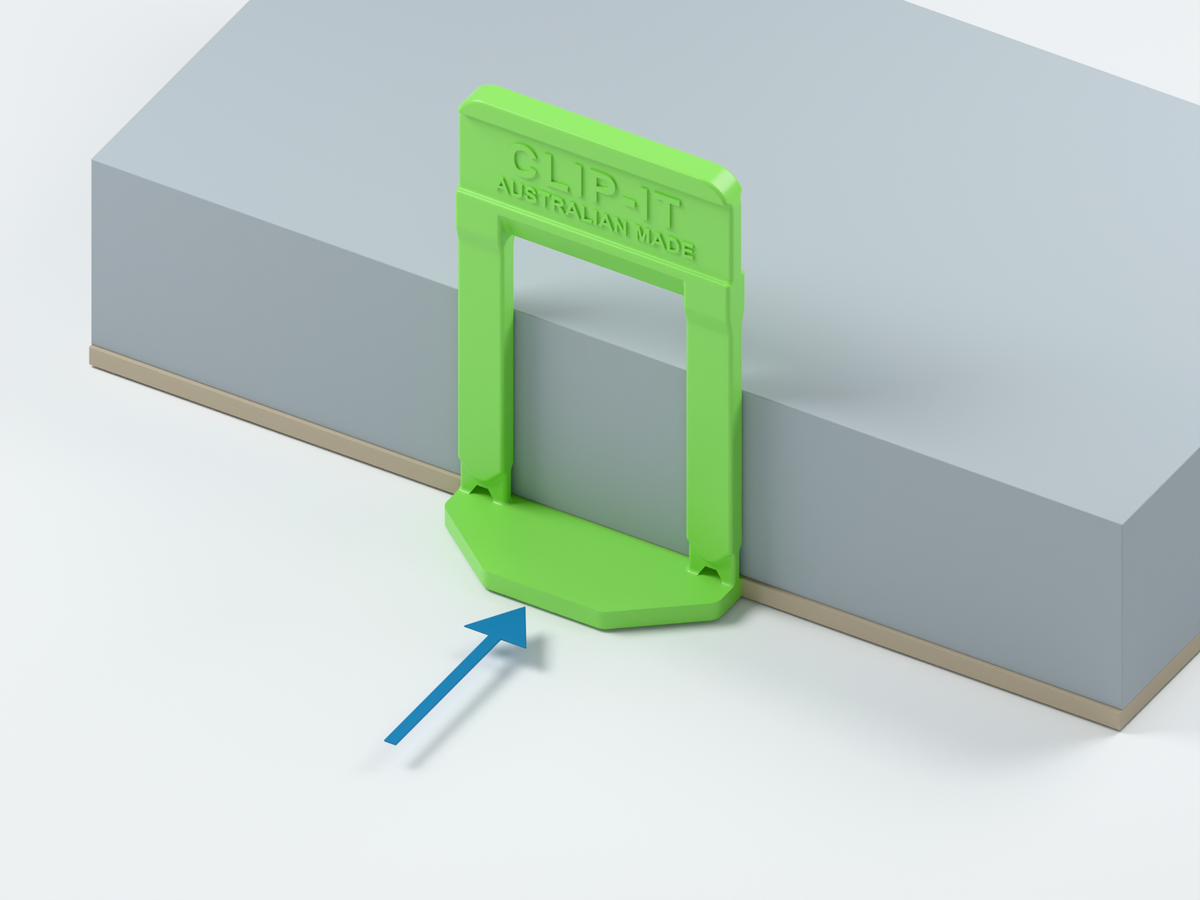

  1. Place the clips and adjoining pieces — 3 mm stone clips · 20–30 mm

    Place the clips and adjoining pieces

    Set the first piece firmly, then slide the clip base under its exposed edge. Keep the upright part of the clip at the joint.

    Position the adjoining piece against the clip so the base sits beneath both edges. Check joint spacing as you continue.

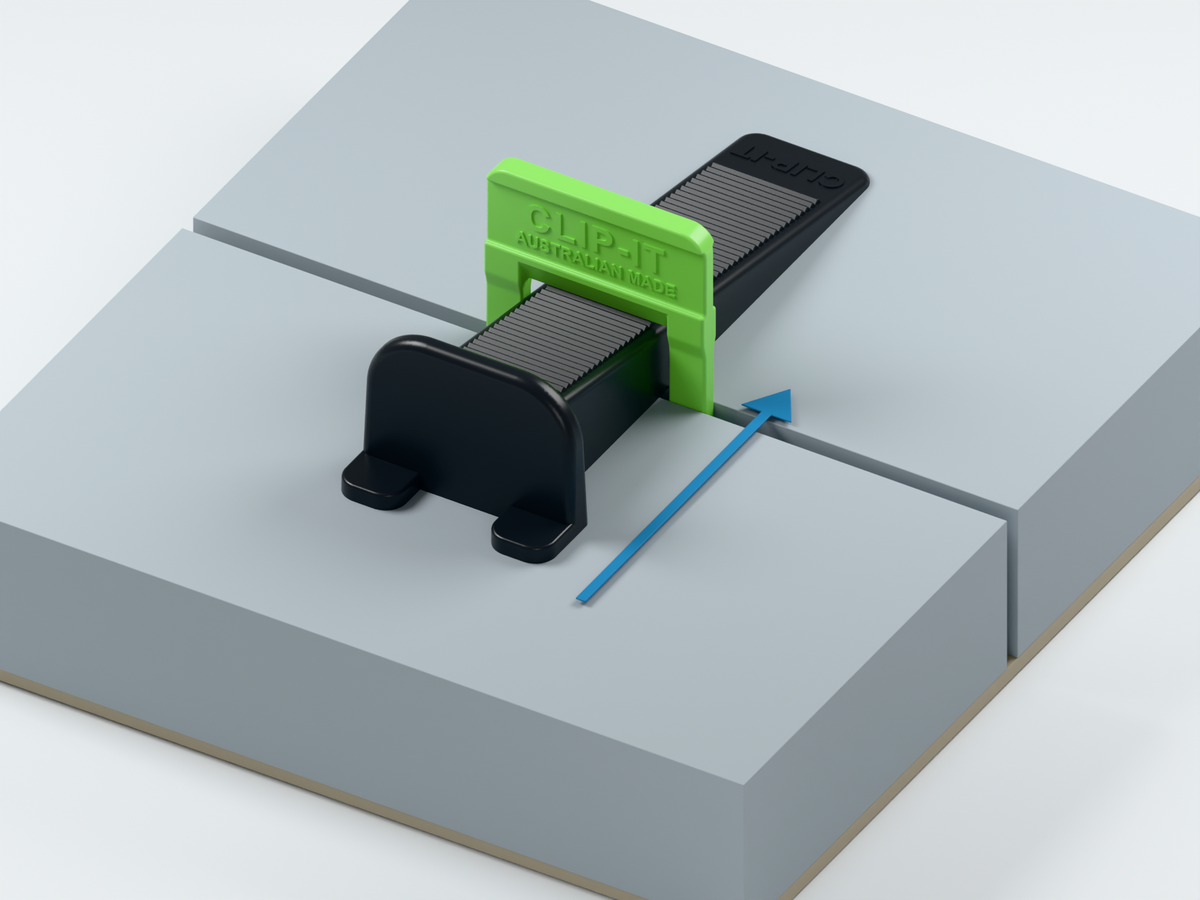

  2. Insert and tighten the wedges — 3 mm stone clips · 20–30 mm

    Insert and tighten the wedges

    Push the wedge specified for your material thickness through the clip opening to hold adjoining edges in alignment.

    For material from 20 mm up to below 25 mm, use 30 mm Stone & Paver Wedges. For 25–30 mm material, including exactly 25 mm, use Regular Wedges. Check adjoining surfaces as you tighten.
    Example shown: 27 mm material with a Regular Wedge.

  3. Let the installation cure, then remove — 3 mm stone clips · 20–30 mm

    Let the installation cure, then remove

    Wait until the adhesive or bedding material has cured, following the manufacturer’s curing instructions.

    Remove clips along the grout line, by kicking in the direction of the joint or using the DE-CLIP-IT Hammer. Recover the wedges for reuse.

Complete the setup

Complete your setup.

Use the compatible CLIP-IT® products for this guide.

A few useful answers

Get the details right.

Material thickness, wedge fit and clip removal.

What do 3 mm and 20–30 mm mean?

3 mm is the grout joint spacing. 20–30 mm is the thickness of the stone, tile or paver the clip is designed to suit.

Which wedge should I choose?

For material from 20 mm up to below 25 mm, use 30 mm Stone & Paver Wedges. For 25–30 mm material, including exactly 25 mm, use Regular Wedges.

When can I remove the clips?

After the adhesive or bedding material has cured. Follow its manufacturer’s curing instructions; there is no single curing time for every product and job.

Why is a clip not breaking cleanly?

Excess adhesive around the clip legs can interfere with removal. Keep that area clear during laying, allow curing, and remove along the grout line. Contact CLIP-IT® if a clip remains stuck.

Can the wedges be reused?

Yes. Recover the compatible wedges after clip removal and keep them for the next installation. The clips are designed to break at the base during removal.

Talk to the people who make it

Need a hand with your installation?

Tell the CLIP-IT® team your material thickness, joint width and what is happening so we can help you check the setup.
