CLIP-IT® installation instructions
How to use your concrete sleeper retainer wedges.
Place the wedge behind the concrete sleeper, between the sleeper and post, to hold the retaining wall forward until backfilling.
- Compatible posts
- H & C channels

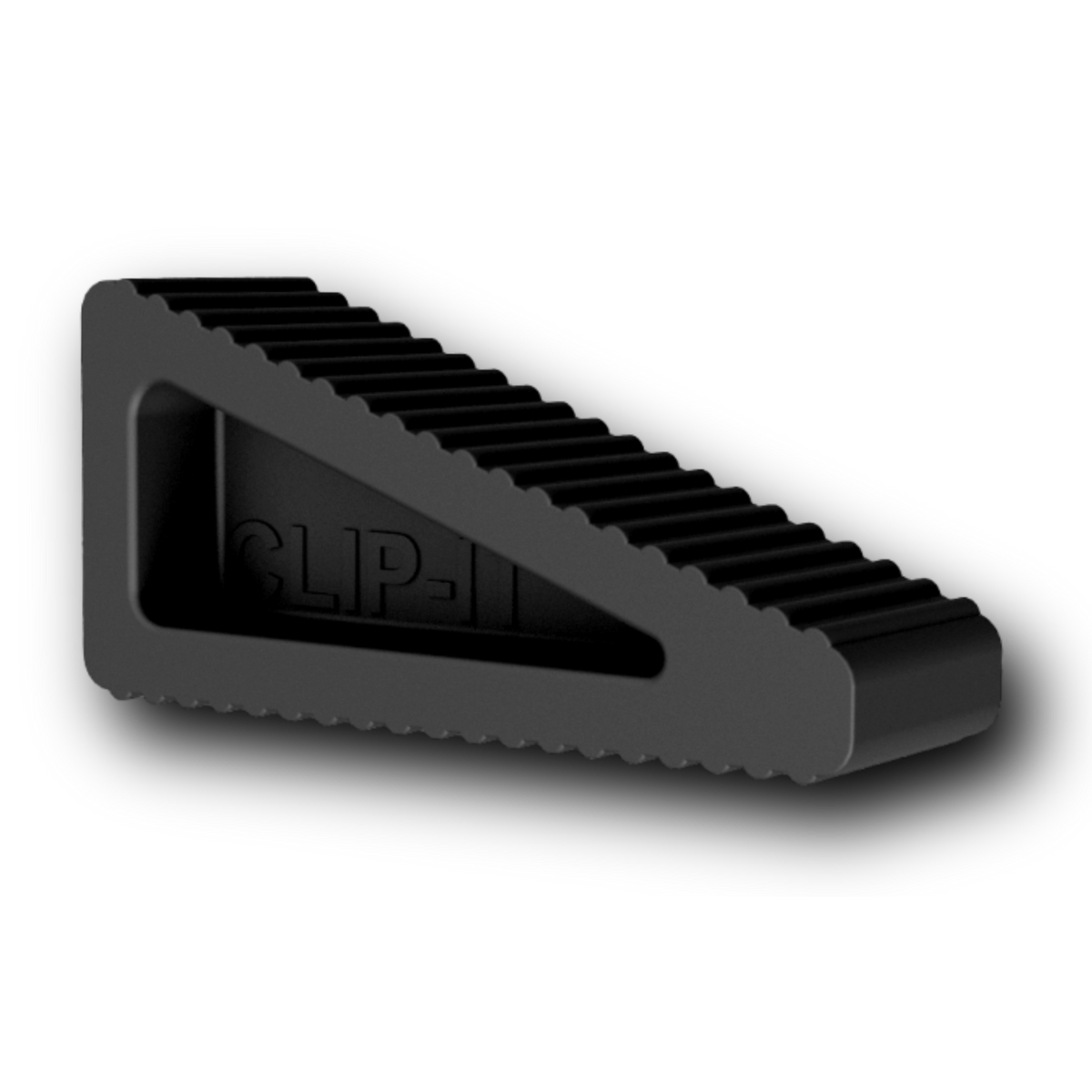

- Wedge profile
- 6–24 mm
- Colour
- Black
Before you start
Check the sleeper and rear gap.
Confirm the post and sleeper setup
These wedges are for concrete sleepers used with H or C channel retaining wall posts. Check the gap behind the sleeper before fitting.
Check the wedge profile
The wedge is 6 mm at the tip and 24 mm at the back. Those dimensions describe the wedge, not the sleeper thickness.
Plan the rear placement
The wedge goes behind the concrete sleeper, between the rear of the sleeper and the post. Confirm the required number and fit for your setup with CLIP-IT® if needed.
Using the product
Check the gap. Place behind. Hold forward.
Use the rear wedge position to hold the sleeper forward until backfilling.
Check the rear gap
Confirm the concrete sleeper and H or C channel post setup, and check the gap behind the sleeper.
Use the 6–24 mm wedge profile to check the actual fit before placing it.
Place behind the concrete sleeper
Position the retainer wedge between the rear of the concrete sleeper and the post.
The wedge holds the sleeper forward until the retaining wall is backfilled.
Keep the sleeper forward until backfilling
Keep the wedge in the confirmed rear position while the wall awaits backfilling.
Check the sleeper fit as part of your wall installation. Contact CLIP-IT® if the wedge does not fit the gap or the setup still has unwanted movement.
A few useful answers
Get the details right.
Rear placement, wedge profile and holding the sleeper forward.
Which posts are these wedges for?
Concrete sleepers used with H or C channel retaining wall posts.
Where does the retainer wedge go?
Behind the concrete sleeper, between the rear of the sleeper and the post. It holds the retaining wall forward until it is backfilled.
What does 6–24 mm mean?
It is the wedge thickness: 6 mm at the tip and 24 mm at the back. It is not the sleeper thickness.
How many wedges should I use per sleeper?
Ask CLIP-IT® to confirm the number and fit for your actual sleeper, post and gap.
What are they made from?
The wedges are made from 100% recycled material for the outdoor retaining-wall application.
Talk to the people who make it
Need a hand with your installation?
Send the CLIP-IT® team your sleeper and post details, gap measurement and a photo of the setup so we can help confirm the fit.
